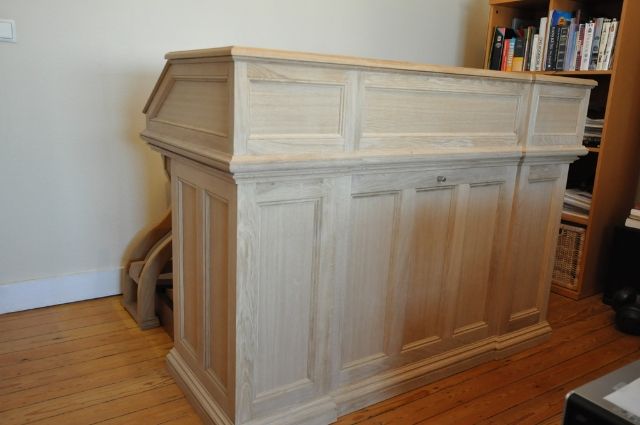

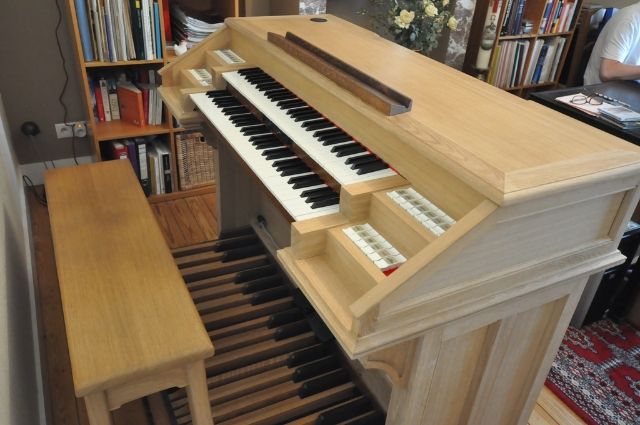

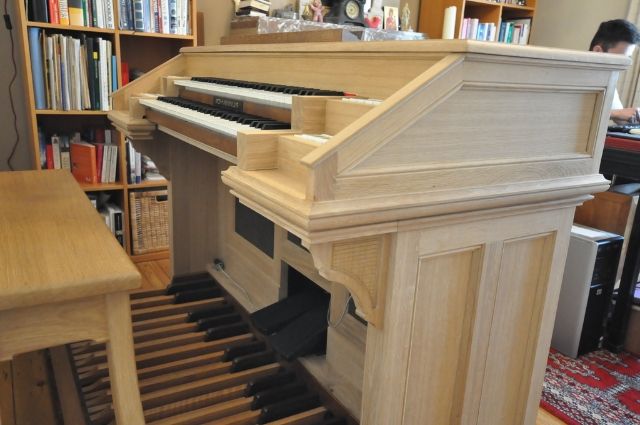

My new console is a replica of the one from the Cavaillé-Coll organ in the Jesuit house in Heverlee, Belgium.
I had to make some minor modifications because of 2 reasons: I wanted the new console to accommodate all the parts of my former Johannus console and I wanted to put the pedalboard more forwards compared to the one in the original console.
I use a touchscreen, making expensive drawknobs redundant.
As I am using the Metz sampleset, you will hopefully agree that the sound matches the look.
It took a lot of planning, measuring (I have spent several hours taking all the measures of the original console), drawing and designing.
A skillful and enthusiastic carpenter did the job.
After many years of dreaming this dream finally has come true!

[Romanos]

Very lovely! The cabinetry is splendid

[ChangedForever]

Joris - nice work!! Just as handsome from the back as it is from the front!! Thanks for sharing the pix!!

-Mark

[Joris]

Thanks for the kind compliments.
I include here some pictures of the original console:





Joris

[Joris]

Some pictures taken during the construction:

The very beginning:


And from here it started to look like an organ console:



And even more:


The frame is built from solid French oak. Panels are made from laminated oak.

[brooke.benfield]

Joris;

Truly beautiful.

I'm sure you will have many years of enjoyment from it.

[ChangedForever]

Joris,

Splendid pix!! Thank you for sharing!! What a nice organ to sit at and play!

Regards,
Mark

[GrahamH]

Yes, indeed!

And I was also thinking, what a nice workshop in which to build a console
No doubt there's a CNC machine near by?

Graham

[Joris]

Thank you all for your kind comments!

Another detail that I didn't mention so far, is that the console can be split into two parts, so that we could move it into the house, to the the first floor, without the help of a moving company.

The workshop where it was manufactured has a large CNC machine, indeed, but it was only used for this support:



All the rest was made with classical woodworking machinery.

The consoles of Cavaillé-Coll have undergone some evolution during his life as an organ builder. Unfortunately there is little known about the craftsmen who made the casings and the consoles. I recently had a discussion about this topic with Gilbert Huybens, who made the first inventory of Cavaillé-Coll's instruments.
This console (the orginal one) dates from 1880. By that time, all his consoles were constructed in the same way. Only the details of the mouldings and the frames of the panels could be slightly different.

[rtucker9]

Even though this may be a modest organ (by stops count), everything looks very proportional and indeed a close replica, I would say with flying colors you have pulled it off! And I can tell some real attention to detail went into that woodwork

[Joris]

It is still a project 'under construction'. The footrests are the next item to be added. Having pedals for couplers and especially the 'pédales de combinaisons' would be very convenient but I haven't decided yet how to do it.
As for the tilting stop tabs : I do not use them. They belong to the Johannus organ, which is still working, but hardly ever used.

The upper lid can be removed by lifting it.


Underneath is the heart of the Johannus organ:


The lower central panel can easily be removed in order to get access to the Hauptwerk computer. And yes, that's where I go to turn it on ...


The speaker in the middle is the woofer from the Johannus organ. I also use it with Hauptwerk. Works very well, considering that the organ stands in a room of only 16 m2.
